Kewtech KT63 PLUS Multifunction Tester

Description

Kewtech KT63 PLUS Multifunction Tester

The Kewtech KT63 PLUS Multifunction Tester offers exceptional simplicity for 18th edition testing, combining the capabilities of a multifunction tester with a user-friendly interface. This device performs a wide range of tests, including insulation testing at 250V, 500V, and 1000V with auto discharge, RCD tests for AC/A and ACS/AS types, phase rotation, and a special DNO mains polarity test.

Advanced Testing Technology

Utilise the KT63 PLUS’s advanced anti-trip loop technology for comprehensive no-trip loop testing on all electronic and electro-mechanical RCDs of 30mA and above. With minimal susceptibility to RCD uplift or noise interference, you can achieve accurate results without disruptions. The auto-null feature ensures precise continuity measurements, and the device can test 10mA to 1000mA RCDs at 0.5x, 1x, and 5x across both 0º and 180º polarities.

User-Friendly Operation

Starting a test with the KT63 PLUS is flexible with three options: a single press of the test button, continuous testing using hands-free mode, or using the test button on a test probe. The continuous live monitoring function prevents damage to the tester, and PFC/PSC measurements are straightforward without needing to change test probes. These results are displayed in real-time alongside loop readings, enhancing efficiency and accuracy.

The large, backlit, full-colour screen is particularly useful for UK-specific RCD tests, displaying all six results simultaneously without scrolling. The device features an easy-to-use single rotary dial with four secondary function keys, making function selection and reading multi-test results straightforward. IP54 rated and fully compliant with BS7671 regulations, the KT63 PLUS is built for reliability and ease of use in demanding testing environments.

Key Features

• 6 in 1 multifunction tester for 18th edition regulations
• Advanced anti-trip loop technology for RCDs of 30mA and above
• No interference or RCD uplift with anti-trip testing
• Insulation tests at 250V, 500V, and 1000V with auto discharge
• RCD testing for AC/A & ACS/AS types
• Phase rotation testing capability
• Special DNO mains polarity testing
• RCD ratings: 10mA, 30mA, 100mA, 300mA, 500mA, 1000mA
• Live monitoring to prevent blown fuses or PCBs
• Simple PFC and PSC measurement without changing test probes
• Real-time display of PFC and PSC alongside loop readings
• Auto-null for accurate continuity testing
• Internal memory for test lead resistance compensation
• Three ways to initiate tests: button press, hands-free, or probe
• Large backlit colour screen for easy viewing

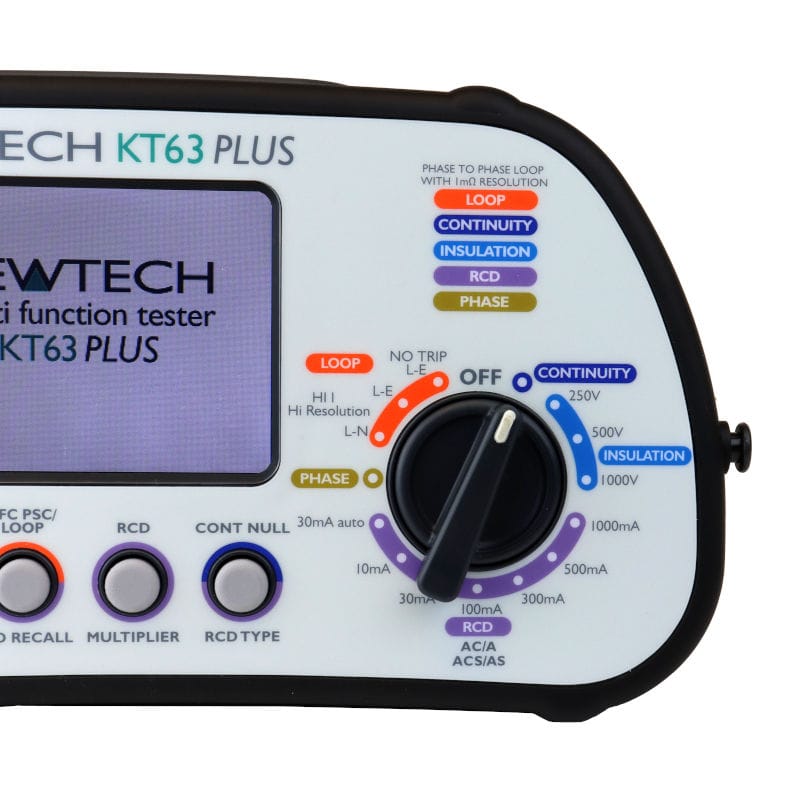

• Single, clearly labelled rotary dial
• Four secondary function keys
• IP54 rated for durability
• Fully compliant with BS7671 regulations

Technical Specifications

• Voltage Insulation Test: 250 / 500 / 1000V
• RCD Tests: AC/A & ACS/AS
• Phase Rotation Test: Yes
• Special DNO Mains Polarity Test: Yes
• RCD Ratings: 10, 30, 100, 300, 500, 1000mA
• Compliance: BS7671
• Part Number: KT63PLUS

What’s Included

• KT63 Plus Multifunction Tester
• ACC063 Distribution Board Test Lead Set
• KAMP12 Mains Lead
• 2 x Alkaline Batteries
• Printed Instruction Manual
• Calibration Certificate
• Soft Carry Case
